GnosticLocalClustering: Density-Based Clustering

The GnosticLocalClustering model performs density-based clustering using Estimating Local Distribution Functions (ELDF). Unlike distance-based methods like K-Means, this approach identifies clusters as high-density regions (modes) separated by low-density regions (valleys) in the estimated probability density function (PDF). This allows it to naturaly determine the number of clusters and handle non-convex cluster shapes.

Overview

Machine Gnostics GnosticLocalClustering builds a continuous probability density Estimate (ELDF) of the data and analyzes its topology. - Peaks (Modes): serve as cluster centroids. - Valleys (Minima): serve as the boundaries between clusters.

It includes mechanisms to automatically determine the optimal scale parameter (\(S\)) which controls the "resolution" of the clustering, effectively deciding how detailed the cluster structure should be.

  • Automatic Cluster Detection: No need to specify n_clusters beforehand; the model discovers them based on data density.
  • Density-Based: Can separate clusters of arbitrary shape and density.
  • Robustness: Inherits the robust properties of Gnostic Distribution Functions.
  • Interpretability: Provides visualization of the underlying PDF, peaks, and boundaries.

Dimensionality

Currently, GnosticLocalClustering is optimized for 1D data (univariate clustering). If multi-dimensional data is provided, it is flattened.

Key Features

  • Density-based clustering using Gnostic ELDF
  • Automatically determines the number of clusters
  • Can search for optimal scale parameters (Grid Search or Auto)
  • Identifies cluster boundaries (valleys) and centroids (peaks)
  • Visualization method plot() included
  • Robust to outliers
  • Compatible with numpy arrays

Parameters

Parameter Type Default Description
start_S float 0.1 Starting value for scale parameter \(S\) grid search.
end_S float 2.0 Ending value for scale parameter \(S\) grid search.
step_S float 0.1 Step size for \(S\).
varS bool False Uses variable scale parameter (heteroscedasticity) if True.
auto_S bool True If True, uses ELDF's internal auto-optimization for \(S\).
verbose bool False Verbosity mode.
history bool True Record search history (S, entropy, clusters).
data_form str 'a' Data form: 'a' (additive) or 'm' (multiplicative).

Attributes

  • centroids: np.ndarray
    • Detected cluster modes (peaks of the PDF).
  • cluster_boundaries: np.ndarray
    • Detected boundaries between clusters (valleys of the PDF).
  • labels: np.ndarray
    • Cluster labels for each sample.
  • optimal_S: float
    • The scale parameter value (\(S\)) of the selected best model.
  • best_model: ELDF
    • The fitted ELDF model object.
  • results: pd.DataFrame
    • History of the grid search (S values, residual entropy, n_clusters).

Methods

fit(X, y=None)

Fit the density-based clustering model to the data.

This process involves: 1. Running an optimization loop (Auto or Grid) to find the best Scale Parameter \(S\). 2. Estimating the PDF using ELDF. 3. Identifying peaks (centroids) and valleys (boundaries). 4. Minimizing Residual Entropy to select the best model.

Parameters

  • X: np.ndarray
    • Input data. (Flattened if > 1D).
  • y: Ignored
    • Not used.

Returns

  • self: GnosticLocalClustering

predict(model_input)

Predict cluster labels for new data. Labels are assigned based on which "valley-bounded" interval the data point falls into.

Parameters

  • model_input: np.ndarray
    • New data to predict.

Returns

  • labels: np.ndarray
    • Predicted cluster labels (integers 0, 1, ...).

score(X, y=None)

Return the Residual Entropy of the fitted model.

Unlike K-Means inertia, this metric measures the "unexplained" information in the data given the distribution model. Lower is better.

Parameters

  • X: np.ndarray
    • Input features.

Returns

  • score: float
    • Residual entropy.

plot()

Visualize the clustering results.

  • Plots the estimated Gnostic PDF.
  • Marks Peaks (Centroids) with red dots.
  • Marks Valleys (Boundaries) with blue crosses and lines.
  • If a grid search was performed, plots the Residual Entropy and Cluster Count vs \(S\).

save(path)

Saves the trained model to disk using joblib.

  • path: str Directory path to save the model.

load(path)

Loads a previously saved model from disk.

  • path: str Directory path where the model is saved.

Returns

Instance of GnosticLocalClustering with loaded parameters.

Example Usage

import numpy as np
from machinegnostics.models import GnosticLocalClustering

# Generate multimodal data (3 mixed gaussians)
np.random.seed(42)
X = np.concatenate([
    np.random.normal(0, 0.5, 50),
    np.random.normal(5, 0.5, 50),
    np.random.normal(10, 0.5, 50)
])

# Initialize using Auto-S optimization
model = GnosticLocalClustering(auto_S=True, verbose=True)

# Fit
model.fit(X)

# Inspect
print(f"Optimal S: {model.optimal_S:.2f}")
print(f"Detected Clusters: {model.n_clusters}")
print(f"Centroids (Peaks): \n{model.centroids}")

# Predict
labels = model.predict(X[:5])
print("Labels:", labels)

# Plot results
# model.plot()

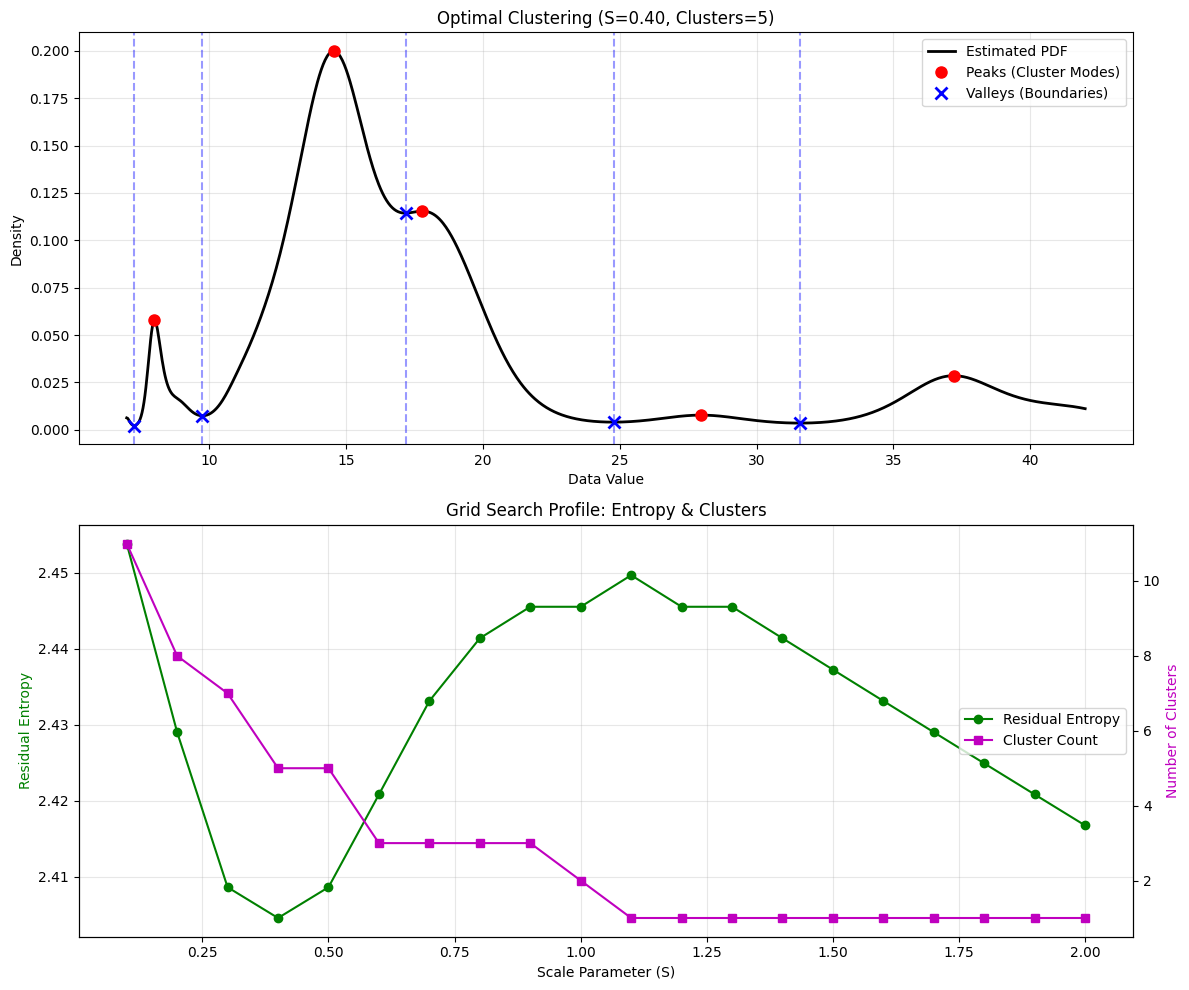

Gnostic Local Clustering

Notes

  • Scale Parameter (\(S\)): This parameter is crucial. A small \(S\) results in a jagged PDF with many peaks (over-clustering), while a large \(S\) results in a smooth PDF with fewer peaks (under-clustering). The auto_S=True setting attempts to find an information-theoretic optimum.
  • Boundaries: Data points exactly on a boundary (valley) are assigned to the cluster on the right (higher value).

Author: Nirmal Parmar
