AutoRegressor: Robust Time Series Forecasting

The AutoRegressor model implements an Autoregressive (AR) process for time series forecasting, enhanced by Mathematical Gnostics. Unlike standard AR models which often use Ordinary Least Squares (OLS), this model employs Iterative Gnostic Reweighting. This allows the model to autonomously down-weight outliers and anomalies in the historical data, resulting in a forecast that is robust to non-Gaussian noise and transient disruptions.

Overview

Machine Gnostics AutoRegressor models the next value in a time series as a linear combination of its previous values (lags).

\[ y_t = c + w_1 y_{t-1} + w_2 y_{t-2} + \dots + w_p y_{t-p} + \epsilon_t \]

The key innovation is the estimation of the coefficients (\(w\)). Instead of minimizing squared error (which is sensitive to outliers), it minimizes Gnostic Entropy via an iteratively reweighted least squares approach.

  • Robust Forecasting: Resilient to outliers and structural breaks in history.
  • Trend Support: Can model constant (bias) and linear time trends.
  • Recursive Forecasting: Supports multi-step ahead prediction.
  • Iterative Refinement: Optimizes weights to ignore noisy historical points.

Key Features

  • Robust Autoregressive (AR) modeling
  • Outlier-resilient coefficient estimation
  • Configurable lag order (\(p\))
  • Supports Constant ('c') and Constant+Linear ('ct') trends
  • Recursive multi-step forecasting
  • Gnostic diagnostics (weights, entropy)

Parameters

Parameter Type Default Description
lags int 1 Number of past observations to use (\(p\)).
trend str 'c' Trend type:'c' (constant/bias), 'ct' (constant + linear trend), 'n' (no trend).
scale str | float 'auto' Scaling method or value for gnostic calculations.
max_iter int 100 Maximum reweighting iterations.
tolerance float 1e-3 Convergence tolerance.
learning_rate float 0.1 Learning rate for weight updates.
mg_loss str 'hi' Gnostic loss function ('hi' or 'hj').
early_stopping bool True Stop early if converged.
verbose bool False Print progress.
history bool True Record training history.

Attributes

  • weights: np.ndarray
  • The final robust weights assigned to the training samples. Low weights indicate potential outliers in the history.
  • coefficients: np.ndarray
  • The fitted autoregressive coefficients (including trend parameters).
  • training_data_: np.ndarray
  • Stored history used for recursive forecasting.
  • _history: list
  • Training process history (loss, entropy) per iteration.

Methods

fit(y, X=None)

Fit the Autoregressor to the time series y.

Parameters

  • y: array-like
  • Target time series.
  • X: Ignored
  • Not used.

Returns

  • self: AutoRegressor

predict(steps=1)

Forecast future values recursively.

Parameters

  • steps: int
  • Number of time steps to forecast into the future.

Returns

  • forecast: np.ndarray
  • Predicted values for the next steps.

score(y, X=None)

Evaluate the model on a time series y using Robust R². This reconstructs the lag features for y and calculates the one-step-ahead prediction accuracy.

Parameters

  • y: array-like
  • Time series to evaluate.

Returns

  • score: float
  • Robust R² score.

save(path)

Saves the trained model to disk using joblib.

  • path: str Directory path to save the model.

load(path)

Loads a previously saved model from disk.

  • path: str Directory path where the model is saved.

Returns

Instance of AutoRegressor with loaded parameters.

Example Usage

import numpy as np
from machinegnostics.models import AutoRegressor
import matplotlib.pyplot as plt

# Generate synthetic AR data with outliers
np.random.seed(42)
t = np.arange(100)
# Sine wave + Noise
y = np.sin(t * 0.2) + np.random.normal(0, 0.1, 100)
# Add spikes (outliers)
y[20] = 5.0
y[50] = -5.0
y[80] = 5.0

# Initialize AR(10) with constant trend
model = AutoRegressor(lags=10, trend='c', verbose=True)

# Fit
model.fit(y)

# Forecast next 20 steps
future_steps = 20
forecast = model.predict(steps=future_steps)

print("Forecast:", forecast)

# Visualization
plt.plot(np.arange(100), y, label='History')
plt.plot(np.arange(100, 100+future_steps), forecast, label='Forecast', color='red')
plt.legend()
plt.show()

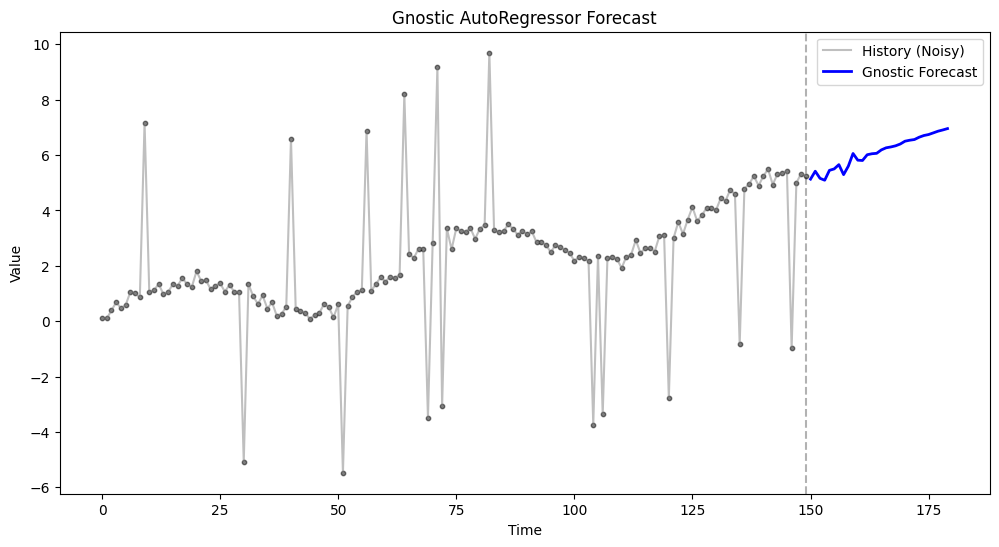

Auto Regressor

Notes

  • Lag Generation: The model automatically creates the lag matrix \(X\) where rows are windows \([y_{t-1}, \dots, y_{t-p}]\) and targets are \(y_t\).
  • Trend Handling:
  • 'c': Adds a column of 1s (bias).
  • 'ct': Adds a column of 1s and a column of time indices \(t\).
  • Scaling: Input data is scaled automatically (default) to ensure stable optimization of gnostic weights.

Author: Nirmal Parmar
