Machine Gnostics Polynomial Regression

The PolynomialRegressor is a robust polynomial regression model built on the principles of Mathematical Gnostics. It is designed to provide deterministic, interpretable, and resilient regression in the presence of outliers, noise, and non-Gaussian data distributions. Unlike traditional statistical models, this regressor leverages algebraic and geometric concepts from Mathematical Gnostics, focusing on event-level modeling and robust loss minimization.

Key Features:

• Robust to Outliers: Uses gnostic loss functions and adaptive weights to minimize the influence of outliers and corrupted samples.
• Polynomial Feature Expansion: Supports configurable polynomial degrees for flexible modeling.
• Iterative Optimization: Employs iterative fitting with early stopping and convergence checks.
• Custom Gnostic Loss: Minimizes a user-selected gnostic loss ('hi', 'hj', etc.) for event-level robustness.
• Detailed Training History: Optionally records loss, weights, entropy, and gnostic characteristics at each iteration.
• Easy Integration: Compatible with numpy arrays and supports model persistence.

---

1. Basic Usage: Robust Polynomial Regression

Let’s compare the Machine Gnostics PolynomialRegressor with standard polynomial regression on a dataset with outliers.

Basic Polynomial Regression

import numpy as np
import matplotlib.pyplot as plt
from sklearn.preprocessing import PolynomialFeatures
from sklearn.linear_model import LinearRegression
from sklearn.pipeline import make_pipeline
from machinegnostics.models.regression import PolynomialRegressor

# Set random seed for reproducibility
np.random.seed(42)

# Generate data
X = np.linspace(0, 2, 10).reshape(-1, 1)
y = 2.0 * np.exp(1.8 * X.ravel()) + np.random.normal(0, 0.2, 10)
y[8:] += [80.0, -8.0]  # Add outliers

# Create test points for smooth curve
X_test = np.linspace(0, 2, 100).reshape(-1, 1)

# Fit regular polynomial regression
degree = 2
poly_reg = make_pipeline(PolynomialFeatures(degree), LinearRegression())
poly_reg.fit(X, y)
y_pred_regular = poly_reg.predict(X)
y_pred_regular_test = poly_reg.predict(X_test)

# Fit robust Machine Gnostics regression
mg_model = PolynomialRegressor(degree=degree)
mg_model.fit(X, y.flatten())
y_pred_robust = mg_model.predict(X)
y_pred_robust_test = mg_model.predict(X_test)
print(f'model coeff: {mg_model.coefficients}')

# Calculate residuals
residuals_regular = y - y_pred_regular
residuals_robust = y - y_pred_robust

# Create figure with subplots

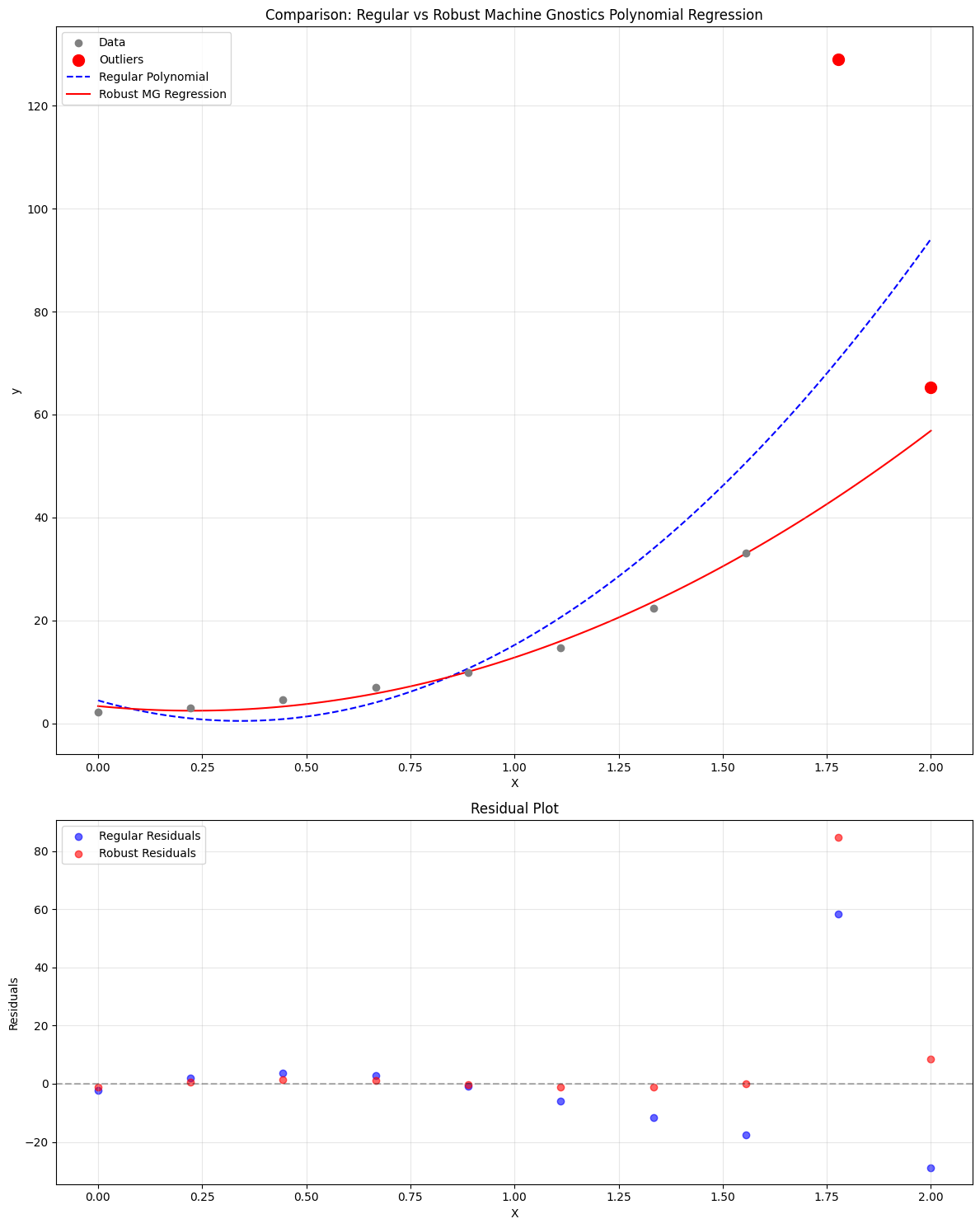

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(12, 15), height_ratios=[2, 1])

# Plot regression curves
ax1.scatter(X, y, color='gray', label='Data', zorder=2)
ax1.scatter(X[8:], y[8:], color='red', s=100, label='Outliers', zorder=3)
ax1.plot(X_test, y_pred_regular_test, 'b--', label='Regular Polynomial', zorder=1)
ax1.plot(X_test, y_pred_robust_test, 'r-', label='Robust MG Regression', zorder=1)
ax1.set_xlabel('X')
ax1.set_ylabel('y')
ax1.set_title('Comparison: Regular vs Robust Machine Gnostics Polynomial Regression')
ax1.legend()
ax1.grid(True, alpha=0.3)

# Plot residuals
ax2.scatter(X, residuals_regular, color='blue', label='Regular Residuals', alpha=0.6)
ax2.scatter(X, residuals_robust, color='red', label='Robust Residuals', alpha=0.6)
ax2.axhline(y=0, color='k', linestyle='--', alpha=0.3)
ax2.set_xlabel('X')
ax2.set_ylabel('Residuals')
ax2.set_title('Residual Plot')
ax2.legend()
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

# Print mean squared error for both methods (excluding outliers)
mse_regular = np.mean((y_pred_regular[:-2] - y[:-2])**2)
mse_robust = np.mean((y_pred_robust[:-2] - y[:-2])**2)
print(f"MSE (excluding outliers):")
print(f"Regular Polynomial: {mse_regular:.4f}")
print(f"Robust MG Regression: {mse_robust:.4f}")

# Print max absolute residuals (excluding outliers)
max_resid_regular = np.max(np.abs(residuals_regular[:-2]))
max_resid_robust = np.max(np.abs(residuals_robust[:-2]))
print(f"\nMax Absolute Residuals (excluding outliers):")
print(f"Regular Polynomial: {max_resid_regular:.4f}")
print(f"Robust MG Regression: {max_resid_robust:.4f}")

Output:

MSE (excluding outliers):
Regular Polynomial: 63.8383
Robust MG Regression: 1.0044

Max Absolute Residuals (excluding outliers):
Regular Polynomial: 17.5910
Robust MG Regression: 1.3305

---

2. Custom Gnostic Loss and Training History

For advanced users, the PolynomialRegressor supports custom gnostic loss functions, adaptive weighting, and detailed training history for analysis and visualization.

Advanced: Custom Loss and Training History

# gnostic loss hi or hj
mg_model = PolynomialRegressor(degree=2, mg_loss='hi', history=True)
mg_model.fit(X, y)
# Access training history
history = mg_model._history
print(history)

---

3. Cross-Validation and Gnostic Mean Squared Error

Cross-validation is essential for evaluating model generalization. Machine Gnostics provides a CrossValidator for robust, assumption-free validation, and a gnostic version of mean squared error (MSE) that uses the gnostic mean instead of the statistical mean.

The gnostic mean is a robust, assumption-free measure designed to provide deeper insight and reliability, especially in the presence of outliers or non-normal data. This ensures that error metrics reflect the true structure and diagnostic properties of your data, in line with the principles of Mathematical Gnostics.

Cross-Validation with Gnostic and Regular Metrics

# cross validation example (optional)

from machinegnostics.models import CrossValidator
from machinegnostics.metrics import mean_squared_error, root_mean_squared_error, mean_absolute_error

# normal mean squared error
def normal_mse(y_true, y_pred):
    return np.mean((y_true - y_pred) ** 2)

# Define cross-validator
cv = CrossValidator(model=mg_model, X=X, y=y, k=5, random_seed=42)

# Perform cross-validation with mean absolute error
cv_results = cv.evaluate(mean_absolute_error)
print("\nCross-Validation Results (Gnostics - Mean Absolute Error):")
for fold, mse in enumerate(cv_results, 1):
    print(f"Fold {fold}: {mse:.4f}")

# cross validation with root mean absolute error
cv_rmse = CrossValidator(model=mg_model, X=X, y=y, k=5, random_seed=42)
cv_results_rmse = cv_rmse.evaluate(root_mean_squared_error)
print("\nCross-Validation Results (Root Mean Squared Error):")
for fold, rmse in enumerate(cv_results_rmse, 1):
    print(f"Fold {fold}: {rmse:.4f}")

# cross validation with mean squared error
cv_mae = CrossValidator(model=mg_model, X=X, y=y, k=5, random_seed=42)
cv_results_mae = cv_mae.evaluate(mean_squared_error)
print("\nCross-Validation Results (Mean Squared Error):")
for fold, mae in enumerate(cv_results_mae, 1):
    print(f"Fold {fold}: {mae:.4f}")

# cross validation with normal mse
cv_normal = CrossValidator(model=mg_model, X=X, y=y, k=5, random_seed=42)
cv_results_normal = cv_normal.evaluate(normal_mse)
print("\nCross-Validation Results (Regular MSE):")
for fold, mse in enumerate(cv_results_normal, 1):
    print(f"Fold {fold}: {mse:.4f}")

Note:

• The mean_squared_error function from Machine Gnostics computes MSE using the gnostic mean, which is more robust to outliers and non-Gaussian data than the traditional mean. Explore more gnostic metrics here
• Use gnostic metrics for deeper, more reliable diagnostics in challenging data scenarios.

---

Tips

• Use PolynomialRegressor for robust polynomial regression, especially when data may contain outliers or non-Gaussian noise.
• Adjust the degree parameter for higher-order polynomial fits.
• Use the loss parameter to select different gnostic loss functions for event-level robustness.
• Enable record_history=True to analyze training dynamics and convergence.
• For more advanced usage and parameter tuning, see the API Reference.

---

Next: Explore more tutorials and real-world examples in the Examples section!
